PS Power Controls

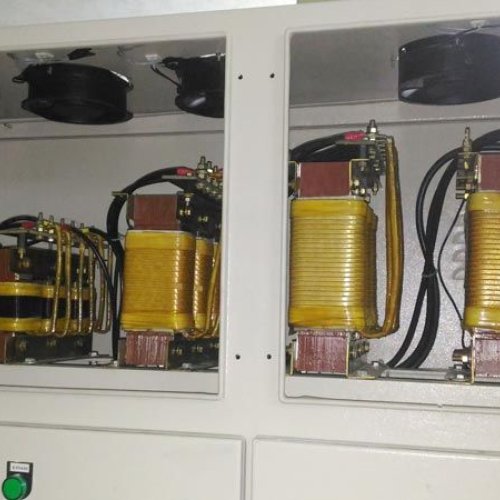

Detuned Harmonic Filter Panel

1.65 Lac - 2 Lac / Set

1 Panel (MOQ)

Business Type Supplier, Retailer, Wholesaler
Certification CE Certified
Voltage AC, DC
Type Detuned Harmonic
Click to view more

Preferred Buyer From

Location India ( Tamil Nadu only) & All other countries

Product Details

1 Year

The Detuned Harmonic Filter is comprised of a capacitor connected in series of a suitable reactor. The rectifier impedance & capacitor impedances are selected in a fashion that capacitor doesn't tune to the frequencies of harmonics generated by loads & hence its life is increased.

In the case of normal APFC panel, chances are there that capacitors tune to the load harmonics frequencies & hence life of the capacitors reduce. We do provides thorough our power quality Harmonic Testing of the existing system requirement of Power Factor Correction & calculates the required amount of reactor & capacitor to fulfill the system's requirement of a Detuned APFC Panel.

Merits :

  • Apart from maintaining the system power factor to a predefined target like 99%, Detuned APFC Panel prevents capacitors from getting overloaded due to harmonics of the order of 5th & above.
  • Switching current amplification will not happen.
  • Overloading of the system transformer & other rotating equipment will be prevented.
